Inconel 686
Supplied by Huaxiao-Alloy – Your Trusted Global Alloy Partner
1. Introduction to Inconel 686
Inconel 686 is a highly specialized nickel chromium molybdenum tungsten alloy developed to resist the most aggressive forms of chemical corrosion. It belongs to the family of Inconel superalloys but is distinct due to its extraordinary resistance to pitting, crevice corrosion, stress corrosion cracking, and oxidizing environments.
Unlike many other high nickel alloys, Inconel 686 offers a unique combination of high strength and broad-spectrum corrosion resistance in both oxidizing and reducing conditions. This makes it one of the most versatile materials for industries such as chemical processing, pollution control, marine engineering, and power generation.

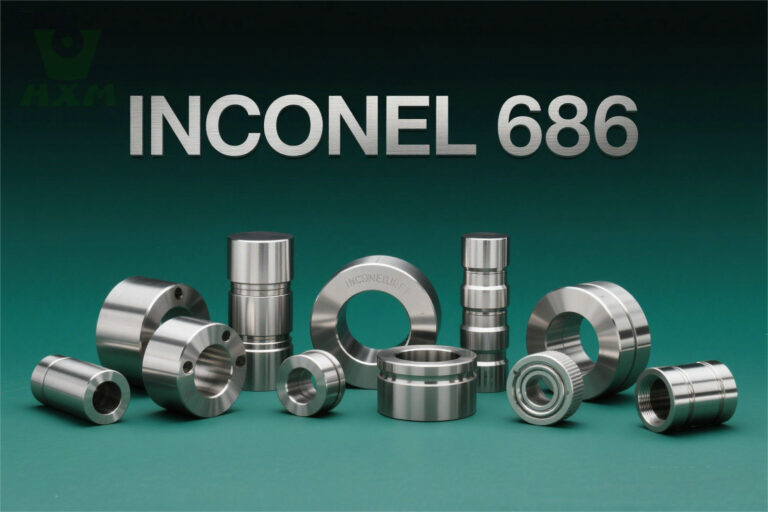

At Huaxiao-Alloy, we supply Inconel 686 in various forms, including sheets, plates, bars, tubes, wires, and customized machined parts, all backed by international quality standards and full traceability.
2. Chemical Composition of Inconel 686
| Element | Typical wt.% | Function |
|---|---|---|
| Nickel (Ni) | Balance (≥55) | Corrosion resistance and structural stability |
| Chromium (Cr) | 19–23 | Enhances resistance to oxidizing agents |
| Molybdenum (Mo) | 15–17 | Improves resistance to reducing acids, especially chlorides |
| Tungsten (W) | 3–4.5 | Strengthens alloy, improves localized corrosion resistance |
| Iron (Fe) | ≤2 | Balance, minor strengthening |
| Carbon (C) | ≤0.01 | Low carbon ensures resistance to sensitization |
| Manganese (Mn) | ≤1 | Deoxidizer |
| Silicon (Si) | ≤0.08 | Improves oxidation resistance |
| Phosphorus (P) | ≤0.015 | Controlled impurity |
| Sulfur (S) | ≤0.01 | Controlled impurity |
The low carbon content of Inconel 686 ensures excellent weldability and prevents intergranular corrosion, even after welding.
3. Mechanical Properties of Inconel 686
| Property | Value |
|---|---|
| Density | 8.73 g/cm³ |
| Melting Range | 1338–1380 °C |
| Tensile Strength at Room Temp | 760 MPa |
| Yield Strength at 0.2 percent offset | 355 MPa |
| Elongation | 45 percent |
| Hardness | ~95 HRB |
| Corrosion Resistance | Outstanding in both oxidizing and reducing media |
These properties make Inconel 686 suitable for harsh chemical service where both strength and resistance to highly corrosive media are mandatory.
4. Key Features of Inconel 686
Exceptional resistance to pitting and crevice corrosion in chloride environments.
High resistance to stress corrosion cracking caused by halides.
Effective in both oxidizing (nitric acid, ferric salts) and reducing acids (hydrochloric, sulfuric).
Excellent weldability with low carbon content to avoid carbide precipitation.
Retains mechanical properties at high operating temperatures.
Long service life in highly corrosive and mixed environments.
5. Heat Treatment
Inconel 686 is supplied in the solution annealed condition. Typical annealing treatment involves heating at 1175 °C followed by rapid quenching. This ensures optimum corrosion resistance and mechanical properties.
Unlike precipitation-hardened alloys, Inconel 686 derives its performance from solid solution strengthening and microstructural stability.
6. Applications of Inconel 686
6.1 Chemical Processing
Heat exchangers handling mixed acids
Reaction vessels and scrubbers
Agitators, stirrers, and pumps
Distillation and evaporation equipment
6.2 Pollution Control Equipment
Flue gas desulfurization (FGD) units
Stack liners and ducts
Absorber towers
Fans and blowers exposed to acidic gas streams
6.3 Marine Engineering
Seawater heat exchangers
Offshore oil and gas processing equipment
Subsea pipelines and valves
6.4 Power Generation
Waste-to-energy plant components
Superheater tubes
Gas turbine exhaust systems
6.5 Pharmaceutical and Food Processing
Components exposed to sterilizing media
High-purity chemical handling systems
7. Advantages of Inconel 686
Universal corrosion resistance: performs equally well in oxidizing and reducing acids.
Low maintenance: minimizes downtime due to failure from localized corrosion.
Extended service life: reduces replacement costs in aggressive chemical plants.
Design flexibility: available in multiple forms for varied industrial requirements.
Weldability: can be fabricated without risk of intergranular attack.
8. Limitations of Inconel 686
Higher initial cost compared with stainless steels or simpler nickel alloys.
Availability may be limited compared to more common grades like Inconel 625.
Machining requires rigid tooling and controlled parameters due to work hardening.
9. Comparison with Other Alloys
| Alloy | Key Strength | Limitation | Typical Applications |
|---|---|---|---|
| Inconel 625 | Versatile corrosion resistance, weldable | Less resistant in mixed acid environments | Marine, aerospace |
| Inconel 686 | Superior pitting, crevice, SCC resistance | Higher cost | Chemical, pollution control |
| Hastelloy C276 | Excellent chemical resistance | Lower strength at high temperatures | Chemical processing |
| Inconel 600 | Oxidation resistance | Poor chloride resistance | Heat treating, furnace parts |
This comparison highlights why Inconel 686 is the material of choice in applications where both oxidizing and reducing conditions occur simultaneously.
10. Standards and Specifications
UNS Number: N06686
W. Nr.: 2.4606
Standards:
ASTM B574 (Bars, Forgings)
ASTM B575 (Plates, Sheets, Strips)
ASTM B619/B622/B626 (Seamless and Welded Pipes and Tubes)
ASTM B366 (Fittings)
11. Product Forms Supplied by Huaxiao-Alloy
We deliver Inconel 686 in a wide range of forms to meet diverse industrial requirements:
Sheets and Plates
Strips and Foils
Bars and Rods
Pipes and Tubes (seamless and welded)
Wires and Mesh
Forgings and Rings
Customized Machined Parts
All products are certified to ASTM standards and can be supplied with third-party inspection on request.
12. Fabrication and Processing
Forming: Hot forming is best conducted at 950–1175 °C. Cold forming possible with intermediate annealing.
Welding: Compatible with standard nickel filler metals (e.g., Inconel 625 filler). Post-weld annealing is recommended.
Machining: Requires sharp tooling, rigid setup, and adequate cooling due to work hardening.
Heat Treatment: Supplied in annealed condition, stress relieving may be applied after forming.
13. Why Choose Huaxiao-Alloy for Inconel 686
At Huaxiao-Alloy, we combine technical expertise, global sourcing, and customer-first service to deliver the best Inconel 686 solutions:
Wide product range in stock for fast delivery
Competitive pricing backed by strong supply chain
ISO 9001 certified quality system
Custom fabrication to drawings and specifications
Technical consultation for application-specific challenges
📩 Email: [email protected]
📱 WhatsApp: +1 (579) 300-2733
15. Conclusion
Inconel 686 stands as one of the most corrosion-resistant nickel alloys available today, combining strength, weldability, and resistance to aggressive chemicals. Its ability to withstand both oxidizing and reducing conditions makes it indispensable in chemical processing, pollution control, marine, and energy industries.
By choosing Huaxiao-Alloy as your trusted partner, you gain access to top-quality Inconel 686 products, competitive pricing, and technical expertise that ensures long-term performance and cost efficiency.
📩 Contact us today at [email protected] or 📱 WhatsApp +1 (579) 300-2733 to request a quote.
It can be used up to around 980 °C, depending on the environment.
Both have excellent corrosion resistance, but Inconel 686 offers better strength at higher temperatures.
Yes, it shows excellent pitting and crevice corrosion resistance in seawater.
Yes, it is weldable with nickel-based fillers and maintains corrosion resistance after welding.
Yes, we offer precision machining and fabrication services to meet customer specifications.
