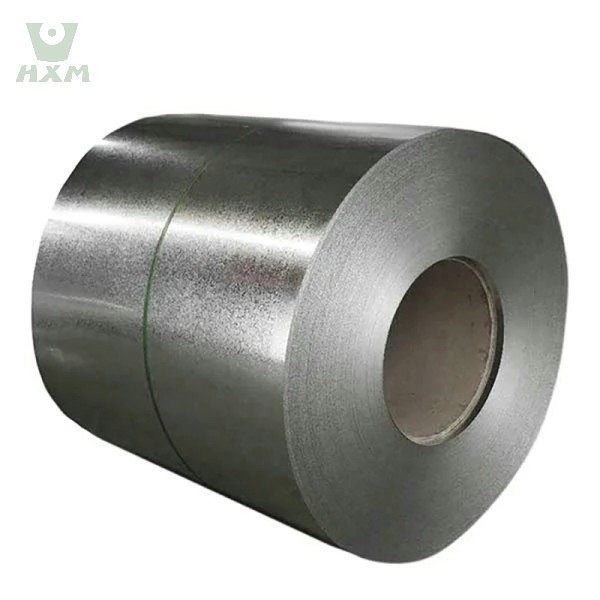

Hot-Dip Galvanized Steel Coil, Sheet & Plate | ASTM A123/A767 Supplier

Huaxiao-Alloy Hot-Dip Galvanized Steel (HDG)​​ delivers ​​zinc-based cathodic protection​​ – sacrificing its coating to shield carbon steel from rust and degradation. With zinc adhesion >3,600g/m² and salt-spray resistance ​​exceeding 2,000 hours​​ (ASTM B117), our HDG steel extends asset lifespans by 3–5x in harsh environments.

TECHNICAL SPECIFICATIONS OF HOT-DIP GALVANIZED STEEL COIL, SHEET & PLATE

Parameter​​Huaxiao-Alloy HDG Steel​Industry Standard
​Coating Mass (Zinc)​Z60-Z600 (60–600 g/m²)ASTM A123 / EN ISO 1461
​Spangle Size​Zero-spangle/Minimal-spangleASTM A924
​Base Material​Commercial Steel (CS), HSLA, StructuralASTM A653 / JIS G3302
​Thickness Range​0.15–6.00 mm (±0.05mm tolerance)EN 10346
​Surface Treatment​Chromate passivation (Cr⁶⁺-free options)RoHS/REACH compliant

Key Advantages:​

  • ​Seamless Coverage:​​ Uniform zinc layer seals edges/corners
  • ​Dual-Phase Protection:​​ Barrier + sacrificial anode action
  • ​Sustainability:​​ 100% recyclable steel with low carbon footprint

Key Advantages:​

  • ​Seamless Coverage:​​ Uniform zinc layer seals edges/corners
  • ​Dual-Phase Protection:​​ Barrier + sacrificial anode action
  • ​Sustainability:​​ 100% recyclable steel with low carbon footprint

APPLICATIONS: WHERE LONGEVITY MATTERS​

​Industry​​Components​​Recommended Coating​
​Construction​Bridges, guardrails, rebarZ275 (275g/m²)
​Renewable Energy​Solar farm mounts, turbine towersZ350 + Chromate
​Agriculture​Silos, irrigation systemsZ200
​Transport​Highway gantries, truck framesZ600
​Utilities​Transmission towers, substationsZ450

HUAXIAO-ALLOY VS. STANDARD HOT-DIP GALVANIZED STEEL COIL, SHEET & PLATE: THE DIFFERENCE​

​Factor​​Generic HDG​​Huaxiao-Alloy HDG​
​Coating Adhesion​≤120 DPN (Peel Test)​≥150 DPN​​ (EN 10346)
​Salt Spray Resistance​720–1,200 hrs​>2,000 hrs​
​Welding Performance​Spatter-prone, Zn fume issuesControlled-spangle + Si-killed steel
​Certification​Batch test reports only​Per-coil MTRs​​ (EN 10204 3.1)

WHY SOURCE HOT-DIP GALVANIZED STEEL COIL, SHEET & PLATE FROM HUAXIAO-ALLOY?​

  • Vertical Integration:​​ Direct sourcing from ISO 9001-certified mills (Tata, NLMK, Posco)
  • Custom Processing:​​ Slitting (<0.2mm burr), leveling, anti-fingerprint coating
  • Global Logistics:​​ FOB China or bonded stocks in Rotterdam/Houston/Singapore
  • Compliance:​​ ASTM A123, EN ISO 1461, JIS G3302, AS/NZS 4680

Secure Long-Term Structural Integrity:​
➤ ​​Request Coating Selection Guide​​ (Zinc vs. ZAM vs. Galvalume®)
➤ ​​Download Corrosion Resistance Calculator​​ (Project lifespan vs. environment)
➤ ​​Get Custom Quote​​ (Specify: Dimensions/coating class/base steel/quantity)

​[DOWNLOAD GUIDE] • [IMMEDIATE QUOTE] • [CONTACT HDG SPECIALIST]​

FAQs: HOT-DIP GALVANIZED STEEL (HDGI)​

A:​​ Huaxiao-Alloy’s ​​Z275–Z600 coatings​​ deliver:

  • ​>50 years​​ in ISO 9223 C3 (low-corrosivity)
  • ​25–40 years​​ in C5-M (coastal/industrial) per ISO 12944
    Verified by ASTM B117 salt-spray tests exceeding 2,000 hours.

A:​​ Yes – with proper techniques:

  • Use ​​Si-killed base steel​​ (reduces Zn fuming)
  • ​Pre-treat welding zones​​ (grind-to-base + Zn-rich primer)
  • ​Post-weld:​​ Apply zinc-rich spray (ASTM A780 repair spec)
    Huaxiao supplies weld-ready HDG with ≤15% Zn loss in HAZ zones.

A: Critical differences:​

​Parameter​​HDG (100% Zn)​​Galvalume® (55% Al-Zn)​
​Salt Resistance​>2,000 hrs>3,500 hrs
​Heat Resistance​Stable to 200°CStable to 315°C
​Cut Edge Protection​Sacrificial (cathodic)Barrier-only
​Best For​Structural, fastenersRoofing, HVAC
Huaxiao supplies both – consult our selector guide.

A:​​ Yes – all offerings feature:

  • ​Cr(VI)-free passivation​​ (RoHS Annex II compliant)
  • ​Full Material Declarations​​ (REACH SVHC <0.1% w/w)
  • ​Green certifications:​​ ISO 14064, EPD 2024-0001

A: HDG saves 40–70% lifecycle costs:​

​Project (20-year)​​HDG Z350​​304 Stainless​
Material Cost$18,500$67,800
Maintenance$0$48,000 (recoating)
​Total Cost​​$18,500​​$115,800​
Source: NACE IMPACT study + Huaxiao case data

A:​​ Three methods per ASTM A123:

  1. ​Magnetic Induction​​ (non-destructive, mill-certified)
  2. ​Strip & Weigh​​ (destructive, ±2% accuracy)
  3. ​XRF Scanning​​ (for alloy verification)
    Huaxiao provides per-coil thickness mapping reports.

A:​​ All shipments include:

  • ​EN 10204 3.1/3.2 Certificates​
  • ​Coating weight verification​​ (ISO 1461 Annex A)
  • ​Chemical composition​​ (base steel)
  • ​Origin tracing​​ (mill HSM coil number)

A:​​ Our proprietary protocols:

  • ​VCI (Vapor Corrosion Inhibitor)​​ paper wrapping
  • ​Chromate-free anti-sweat treatment​
  • ​Desiccant packs​​ in containers
    Guarantees >99.9% rust-free arrival.

A: Yes – superior to bare steel when:​

  1. ​Surface prep:​​ Brush blast to profile Sa2.5 (ISO 8501)
  2. ​Primer:​​ Etch primer (zinc phosphate/epoxy)
  3. ​Topcoat:​​ PU/fluoropolymer systems
    Result: 2–3x longer paint adhesion vs. ungalvanized steel.

A:​​ Yes – capabilities include:

  • ​Plasma Cutting:​​ Thickness ≤100mm (ISO 9013)
  • ​Tolerance:​​ ±1.5mm on perimeter, ±0.5° on bevels
  • ​Packaging:​​ VCI + edge protectors for export
